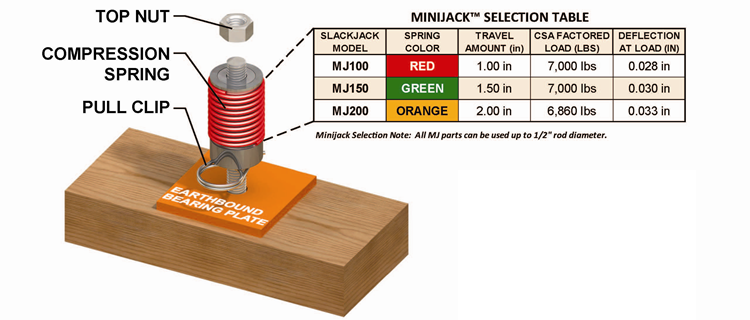

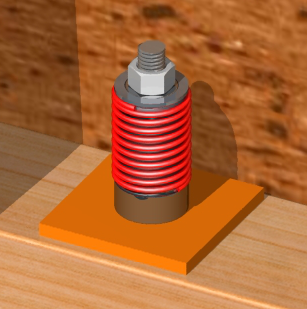

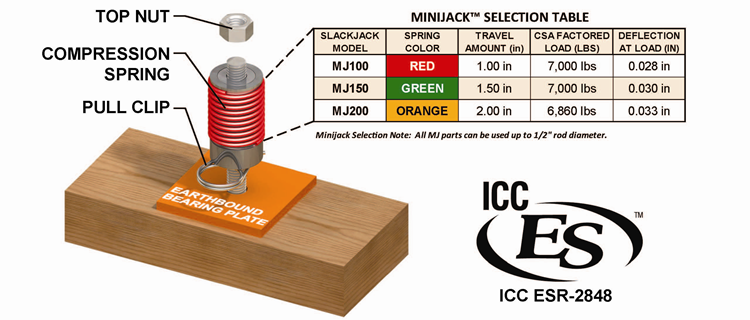

MiniJack® Shrinkage Compensation Device  | |
|
The Earthbound System now features the revolutionary MiniJack® shrinkage compensating fastener. |
|
| Feature and Benefits: | |
| ● | Installs faster than other shrinkage devices. |
| ● | Each MiniJack® device can be reset in the field without tools. |
| ● | No lag screws to buy separately and install. |
| ● | No set screw to forget to remove. |
| ● | No baling wire to remove and tie strap to cut. |
| ● | Activation clip is specially designed to not be forgotten. |
| ● | Each MiniJack® provides constant tension to the rod. |
| ● | Color coded for threaded rod size and travel distance. |
| ● | Available in 1", 1.5" and 2" travel. |
| ● | Canada Limit States capacities up to 5,000 x 1.4 factored. |
| ● | Design for Threaded rod sizes from 3/8” to 1/2”. |
| SLIDE | SPIN | PULL | FINISH! |
 |
 |
 |
 |
| Slide MiniJack® on top of color bearing plate. | Spin nut down hand tight. | Pull clip away from device. | Place clip on the rod above the device to show activation. |
